| Electrical characteristics |
| Range of nominal resistance |
100Ω—1MΩ |
|
|
| Resistance tolerance |
±10％ |
|
|
| Terminal resitance |
≤1%R或10Ω |
|
|
| Contact resistance vartion |
CRV≤3%R或5Ω |
|
|
| Insulation resistance |
R1≥1GΩ(500Vdc) |
|
|
| Withstand voltage |
707Vac |
|
|
| Maximum wiper current |
>100mA |
|
|
| Effective electrical travel |
>>Total mechanical travel的70% |
|
|
| |
|
| Environmental characteristics |
| Rated Power |
0.5W@＋70℃ ，OW@100℃ |
|
|
| Temperature range |
－55℃—＋100℃ |
|
|
| TCR |
±250ppm／℃，±100ppm／℃ |
|
|
| Collision |
390m／s2,4000次，△R≤50%R |
|
|
| Temperature range |
-55℃,30min,+100℃,30min |
|
|
| 5 cycle |
△R≤±5％R,△(Uab/Uac) ≤±5% |
|
|
| Vibration |
10 ~ 500Hz, 0.75mm, 6h
△R≤±5%R, △(Uab/Uac) ≤7.5%R |
|
|
| Climate category |
按IEC68-2-2等 Meet IEC68-2-2 etc.
△R≤±10%R, R1≤100 MΩ |
|
|
| 70℃Electrical endurance |
0.25W, 1000 MΩ
△R≤±10%R, CRV≤3%R或5Ω |
|
|
| Mechanical endurance |
200周 |
|
|
| Steady damp heat |
按IEC68-2-3, Ca, 96h
△R≤±10%R, R≥100 MΩ |
|
|
| |
|
| Physical characteristics |
| Total mechanical travel |
250±10° |
|
|
| Staring torque |
1 ~ 35mN·m |
|
|
| Mark |
标准阻值、Resistance tolerance |
|
|
| 产品型号 |
Resistance code, resistance tolerance(10% no indication), Type |
|
|
| Standard package |
50pcs/tube |
|
|
| |
|
| Setting |
 |

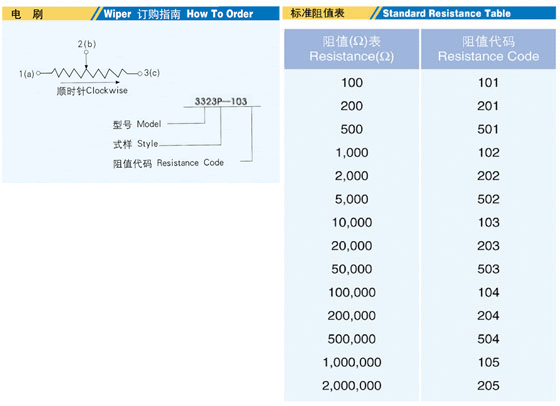

| How To Order |
 |
